Starclean Conveyor Belt Cleaners.

Product Overview.

Starclean saves clients time and money by reducing conveyor downtime, wasted material, manual handling, clean-up time, dust emissions, and health and safety concerns associated with material carryback.

Manufactured by Schulte Strathaus, one of Europe’s most respected belt cleaner manufacturers, Starclean incorporates the ingenious twist-swing tensioning mechanism. This ensures optimal blade contact to the belt, regardless of individual segment wear, for excellent cleaning performance, minimal maintenance and cost effective operation.

The simplicity of the unique quick-release tensioning devices and quick-change, slot-in blade design means site staff can quickly and safely carry out tool-less maintenance. It literally takes seconds to disengage, maintain and re-tension, keeping maintenance costs and downtime to a minimum.

Enquire
Starclean Pre-Cleaner Starclean Primary Cleaner Starclean Secondary Cleaner Starclean Chevron Cleaner Starclean S³ Smart Scraper Downloads

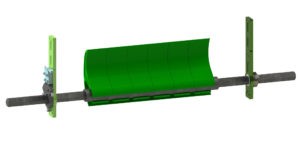

Starclean Pre-Cleaner

A primary position pre-cleaner which is highly effective at removing carryback from the conveyor belt, particularly in applications conveying high tonnages, wet and coarse material. Typically fitted at the ‘on head’ position of the head pulley, the system utilises specially formulated, belt friendly, polyurethane blades that adapt to the belt surface – even after wear.

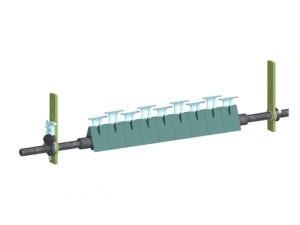

Starclean Primary Cleaner

A primary position cleaner which is extremely effective at removing fines and moisture from the belt. This cleaner is typically fitted at the ‘on head’ position of the head pulley and provides an alternative to ‘under belt’ secondary cleaners where space limitations impede installation. Abrasion resistant tungsten carbide blades ensure maximum cleaning performance and minimal adjustment.

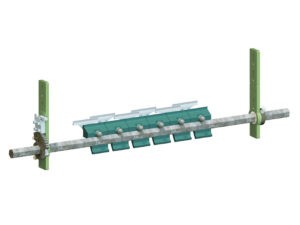

Starclean Secondary Cleaner

The Starclean secondary scraper provides the benchmark for high efficiency removal of fines and moisture, offering the highest levels of conveyor cleaning performance. This cleaner is typically fitted in the ‘under belt’ position on or behind the nip point. Abrasion resistant tungsten carbide blades ensure maximum cleaning performance and minimal adjustment.

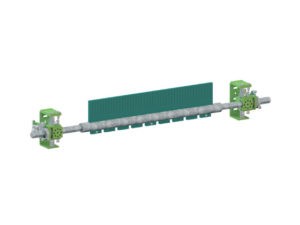

Starclean Chevron Cleaner

The Starclean chevron cleaner provides a good level of cleaning in a traditionally challenging application. This secondary position cleaner is fitted in the ‘under belt’ position on the return strand just after the head pulley. The 900 chevron series is a low cost, reliable alternative to other technologies, such as brush cleaners or air knife systems. The single piece blade is manufactured from wear resistant polyurethane which is formed into flexible fingers, cleaning deep into the cleats of the belt for maximum effectiveness.

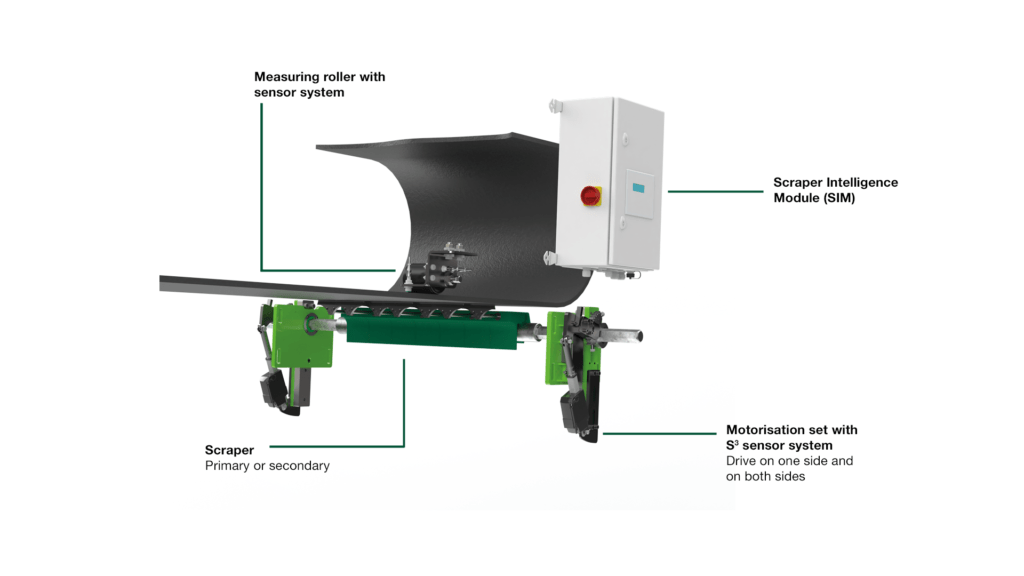

Starclean S³ Smart Scraper

The unique smart scraper with an electric drive, combined with smart cloud dashboard, enables predictive maintenance of wear elements through preventive damage detection on the conveyor belt. This digital innovation gives the scraper the ability to self-regulate wear and tear while also ensuring a constant pretensioning force – completely automatically.

Designed according to the principle of “detect – react – protect”, this innovation enables continuous contact-based inspection of the conveyor belt, thus enabling predictive maintenance.

STARCLEAN® Smart Scraper launched in UK

The STARCLEAN® S³ is an innovative conveyor belt cleaner and monitoring system enables continuous, contact-based control of the conveyor belt and scrapers. It contributes greatly to a lower maintenance, more efficient, and safer conveyor system.

STARCLEAN® S³ allows for predictive maintenance of the belt cleaners and protects the belt itself through preventive damage detection. This digital innovation gives the scraper the ability to self-regulate wear and tear whilst also ensuring a constant pre-tensioning force – completely automatically.

Learn more
STARCLEAN® Smart Scraper launched in UK

Typically used in sectors:
