As part of a loading point solution, conveyor sealing systems and impact beds help prevent material spillage, control dust emissions, and protect conveyor structures & components.
We work with industry leading manufacturer, TBK Group who’s modular solutions are proven worldwide to offer easy installation, simple maintenance, and high-performance over the long-term.
Sealing systems include:
SealTek – the next generation of conveyor sealing systems
Spill-Ex – well established with tens of thousands of metres in operation worldwide.

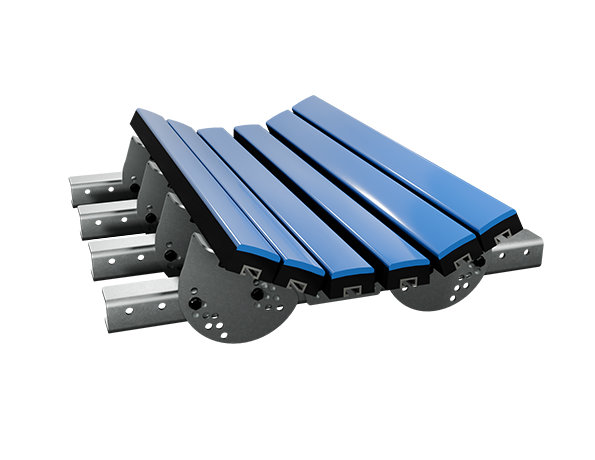

We also offer FRIFLO impact beds that effectively support the belt and guide it with minimal interference. Designed in house, our system is rugged, reliable and extremely simple to maintain.
SealTek is the next generation of skirting systems from TBK, building upon the best features of the acclaimed Spill-Ex sealing range. It provides the simplest of maintenance and ensures minimal spillage and dust emission over the long term.
The rubber blocks on each length of SealTek all overlap, eliminating areas in which material can escape. Collectively, the blocks form a continuous seal, yet they can still be individually adjusted and replaced with ease.
The sealing blocks can be adjusted by 60mm, over 50% of their overall height, to maximise service life. Each block is easily adjusted by tapping it with a hammer, making adjustments and maintenance quick and simple.
The highly durable 5mm thick backing plate, available in 2 options, is also designed to dovetail with additional lengths of SealTek and can be simply welded or fastened into place. This ensures a consistent and continual seal throughout the transfer point and acts as a wear plate to protect the rubber blocks from excessive lateral material pressure.
• Independent, Interlocking & overlapping blocks provide excellent seal
• Simplest adjustment. Simply tap blocks with hammer
—–
• Installation Gap – 5mm to 20mm • Block adjustment – 60mm
• Wear plate – Mild steel/Hardox 400 • Dimensions – 1000mm (l) x 149mm (h)
• Blocks independently adjusted to contours of belt
• Unscrew single bolt for quick and simple maintenance
—–
• Installation Gap – 15mm to 20mm • Block adjustment – 45mm
• Backing plate – Galvanised steel • Dimensions – 1000mm (l) x 150mm (h)
• Designed for installation where minimal space is available
• Blocks independently adjusted to contours of belt
—–
• Installation Gap – 0mm to 15mm • Block adjustment – 30mm
• Backing plate – Galvanised steel • Dimensions – 1000mm (l) x 95mm (h)
• Individually adjustable blocks, cut to profile of trough
• Unscrew single bolt for quick and simple maintenance
—–
• Standard duty – LPR: 1000mm (l) x 150mm (h). 45mm block adjustment
• Heavy duty – HDR: 1200mm (l) x 300mm (h). 70mm block adjustment
• Cost effective loading support, guiding belt with minimal interference
• Bars combine low friction UHMWPE surface with impact damping rubber
—–
• Standard range: Belt width = 600mm – 1000mm. Impact bars = 1220mm (l)
• Custom sizes and configurations available upon request
